Product description

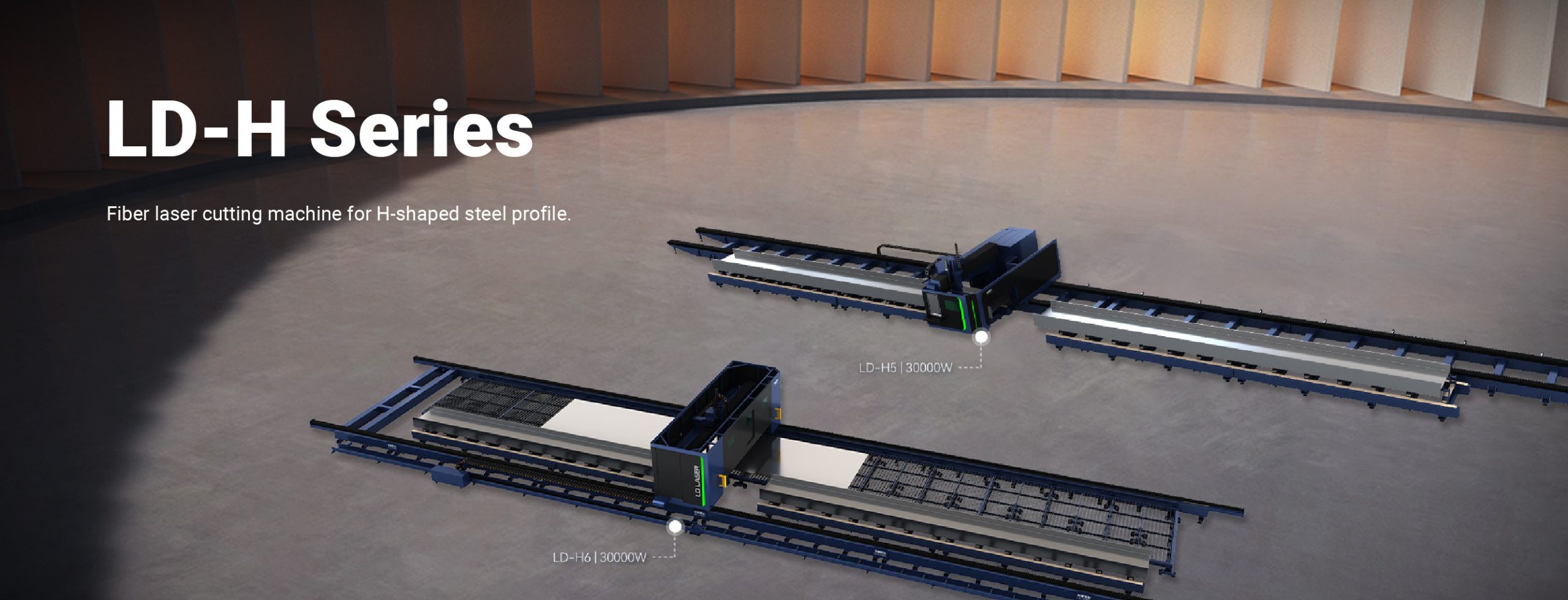

Fiber laser cutting machine for H-shaped steel profile

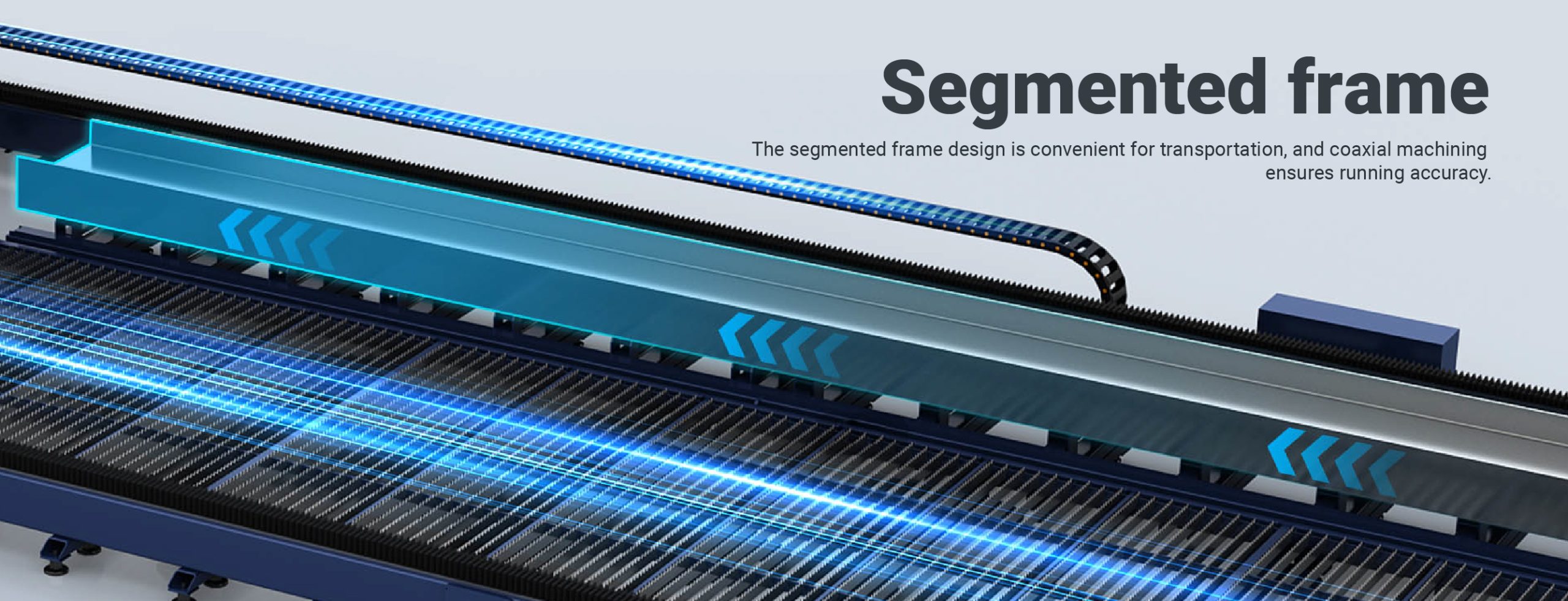

- Segmented bed. The segmented bed design is convenient for transportation, and the coaxial processing ensures the accuracy of the stroke.

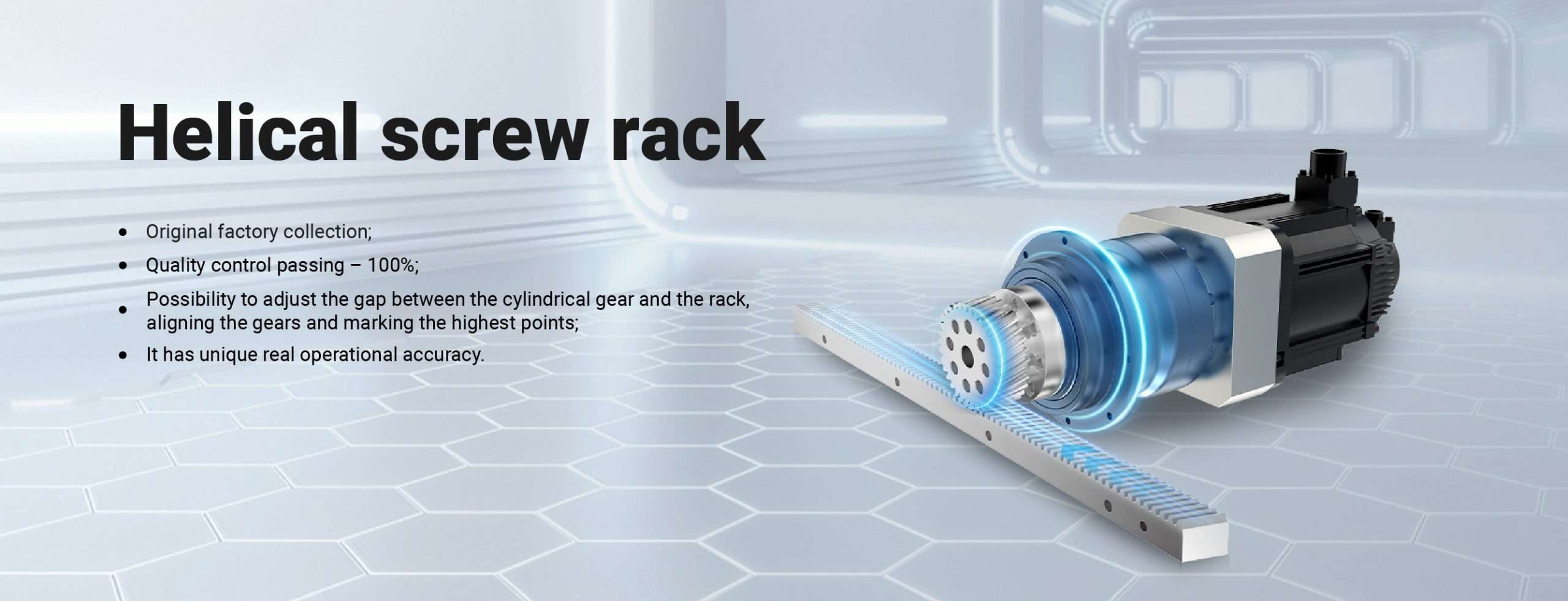

- Helix screw rack. Original factory assembly. Quality control pass – 100%. Ability to adjust the gap between the spur gear and the rack by aligning the gears and marking the highest points. Has unique real operational accuracy.

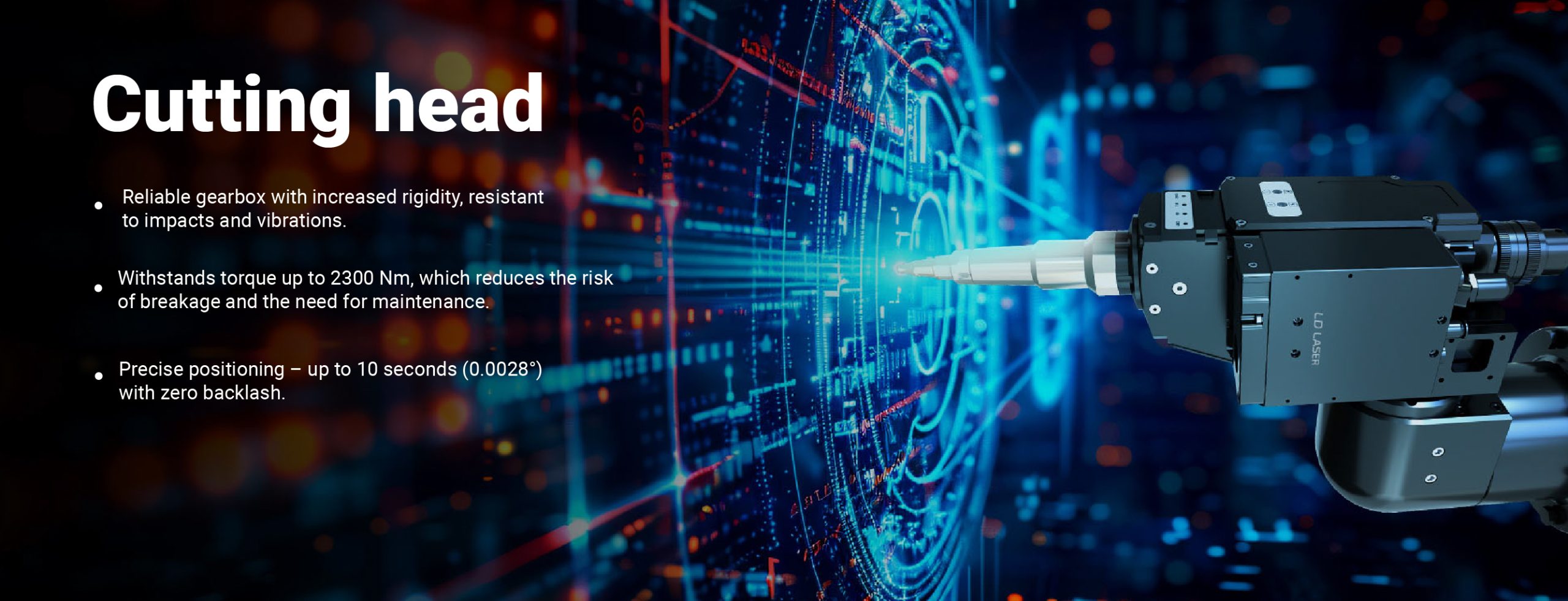

- Cutting head. A reliable gearbox with increased rigidity, resistant to shocks and vibrations. Withstands torque up to 2300 N·m, which reduces the risk of breakage and the need for maintenance. Precise positioning — up to 10 seconds (0.0028°) with zero backlash.

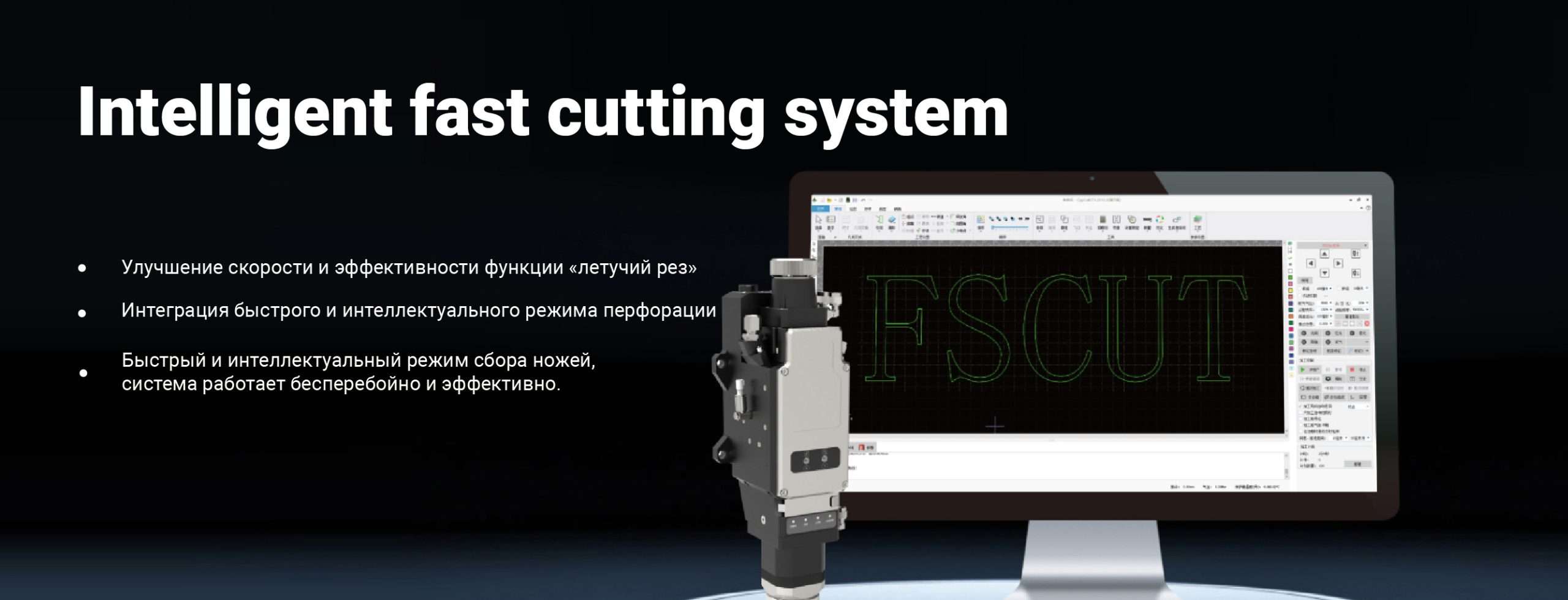

- Intelligent fast cutting system. Improving the speed and efficiency of the “flying cut” function, integrating fast and intelligent perforation mode, fast and intelligent knife collection mode, the system runs smoothly and efficiently.
Technical parameters
| Machine model | Machine model | Dimensions | Processing range | Sheet metal processing range | Power | X-axis acceleration | Y-axis acceleration |
| LD-H6 | 32000mm*7000mm*3700mm | 150mm≤h≤1000mm 100mm≤b≤400mm | 3000mm*25000mm | 12000W-30000W | 0.5G | 0.5G |

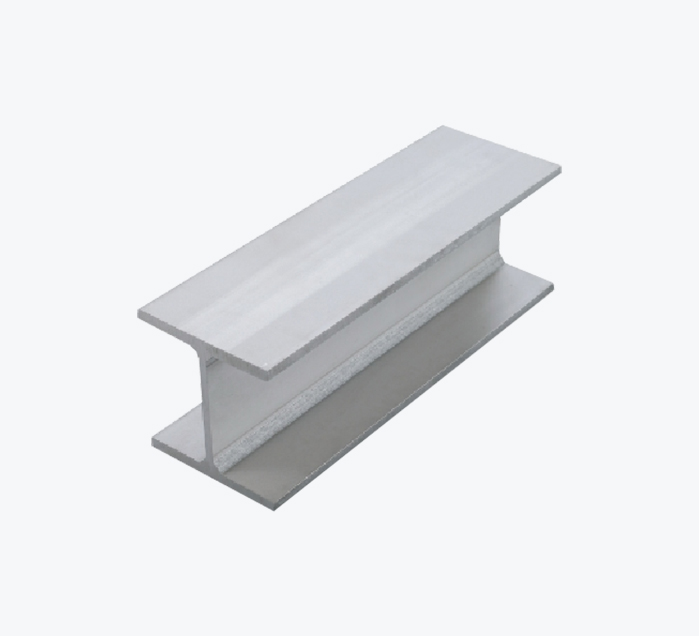

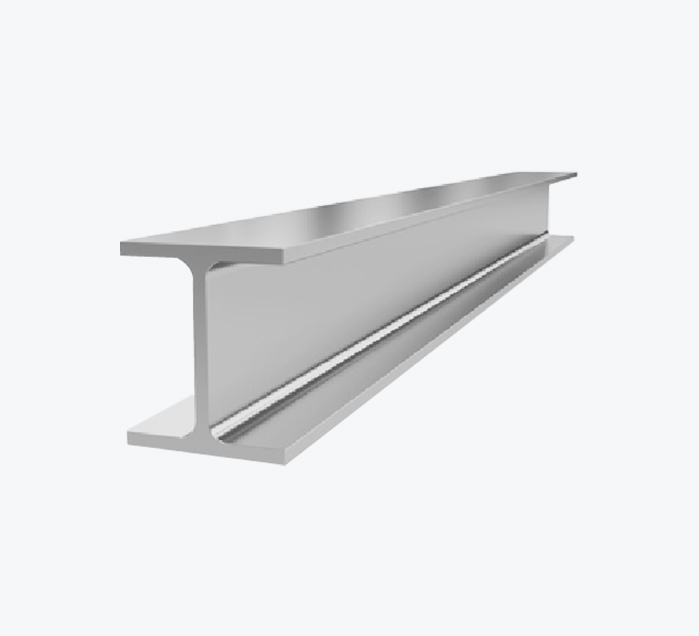

Cutting samples
