Product description
Sheet Metal and Tube Cutting

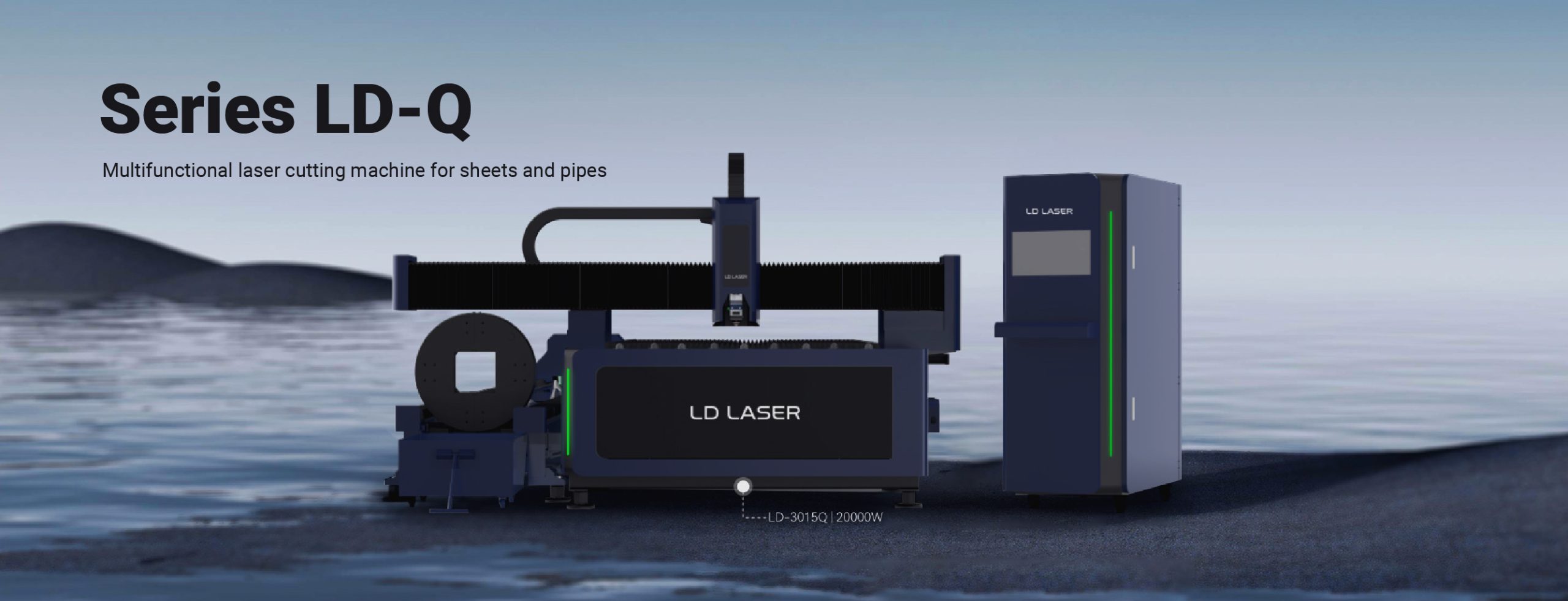

LD-Q Series
Multifunctional Sheet and Tube Laser Cutting Machine

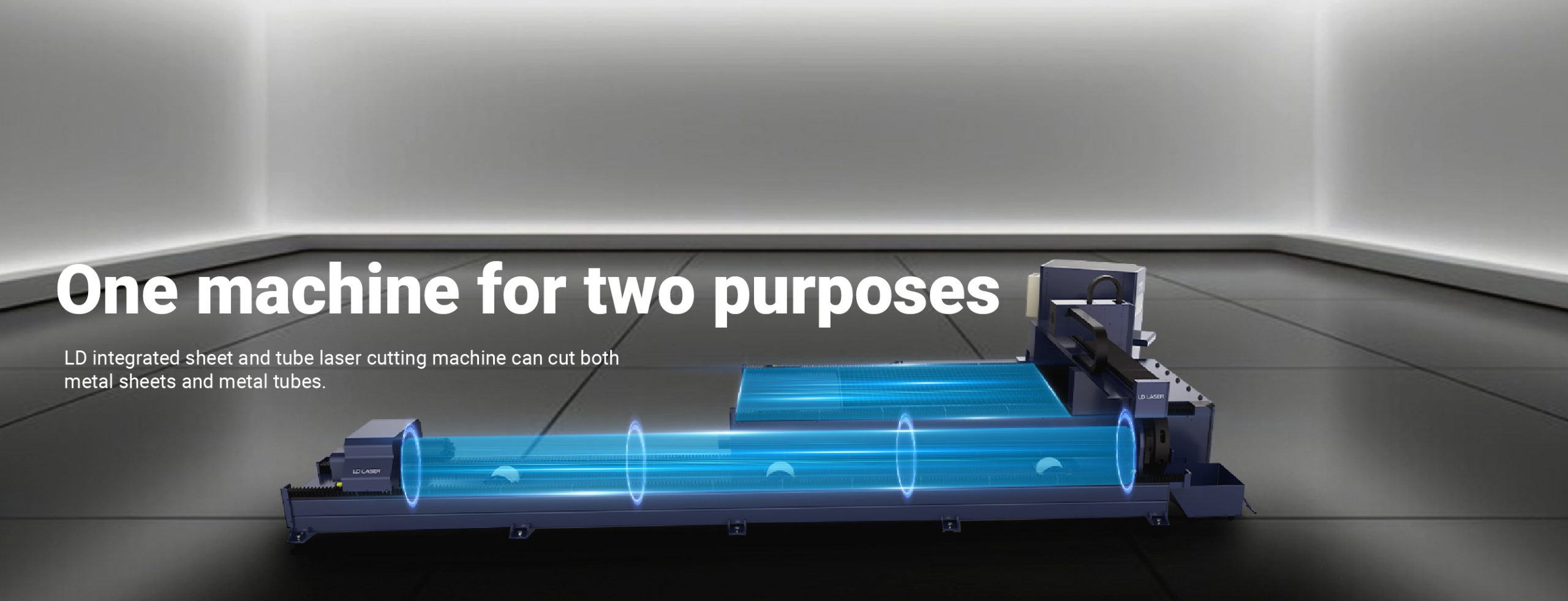

- One Machine for Two Purposes. LD Integrated Sheet and Tube Laser Cutting Machine can cut both metal sheets and metal tubes.

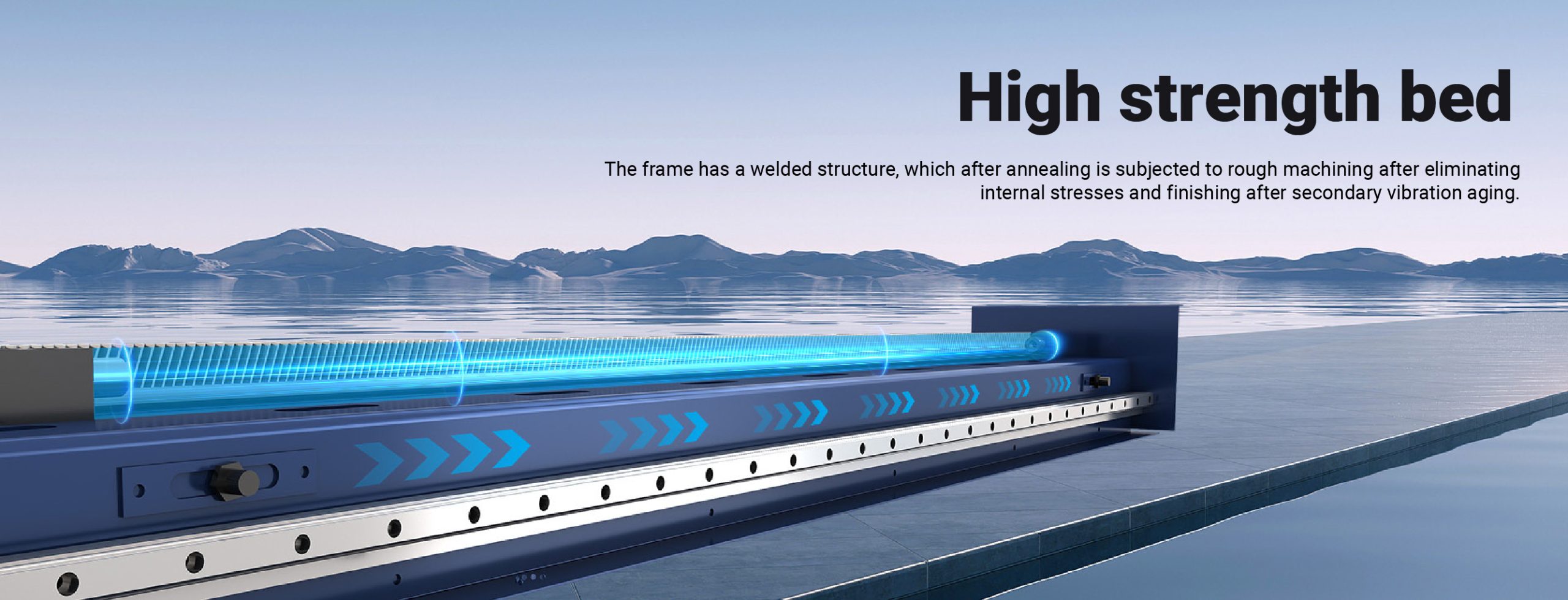

- High Strength Machine Bed. The machine bed is a welded structure, which is rough-machined after annealing to eliminate internal stress, and finished after secondary vibration aging.

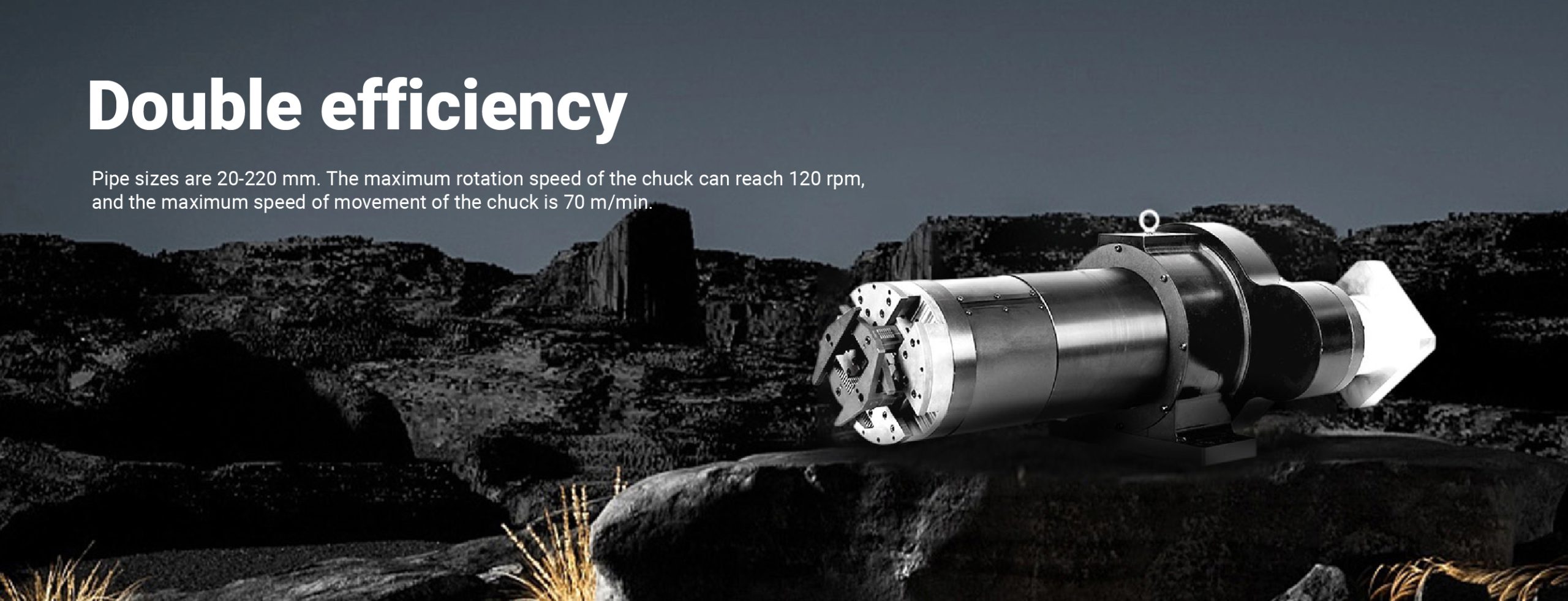

- Double efficiency. Pipe sizes – 20-220 mm. The maximum rotation speed of the chuck can reach 120 rpm, and the maximum moving speed of the chuck is 70 m/min.

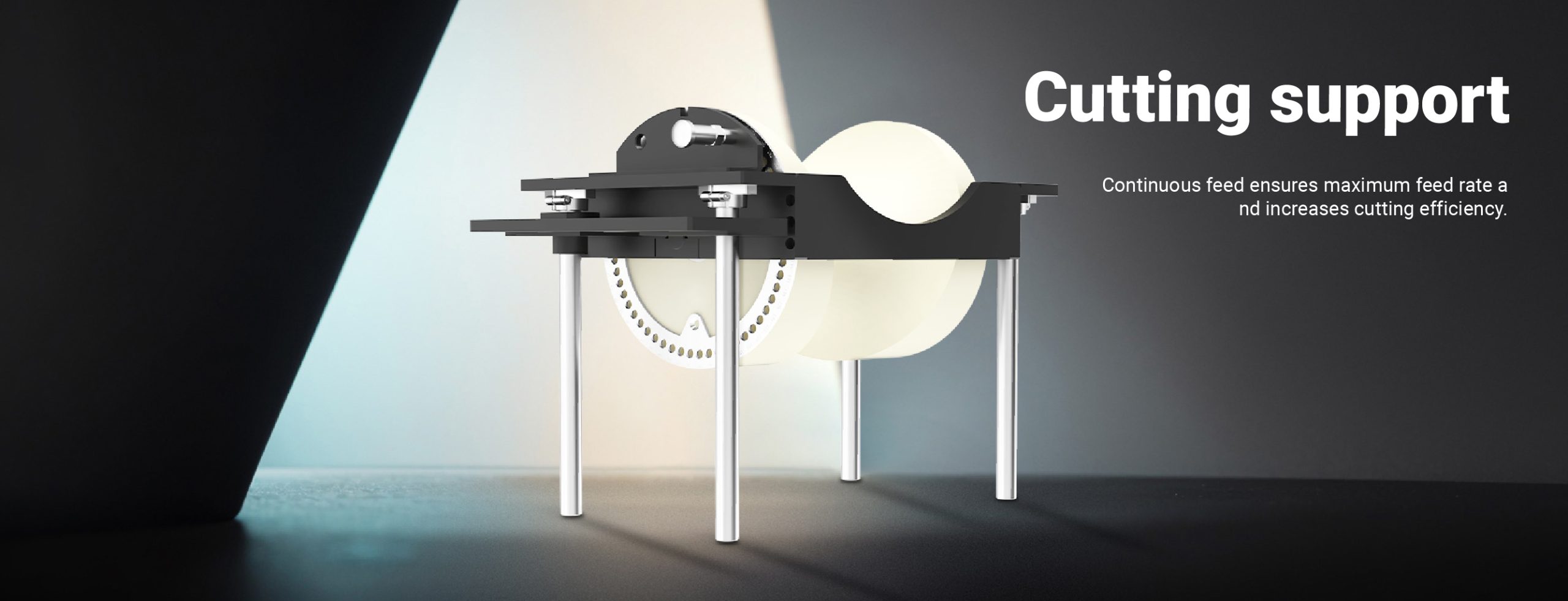

- Cutting support. Continuous feed ensures maximum feed speed and improves cutting efficiency.
Technical parameters
| Machine model | Processing area | Power | Maximum coupling speed | X/Y axis positioning accuracy | X/Y axis change accuracy | Maximum acceleration |
| LD-3015Q | 3000mm*1500mm | 1000W-20000W | 110m/min | +0.02mm/m | +0.03mm/m | 1G |
| LD-4015Q |
4000mm*2000mm | 1000W-20000W | 110m/min | +0.02mm/m | +0.03mm/m | 1G |
Cutting samples
