Product description
Enclosed type machines with interchangeable tables

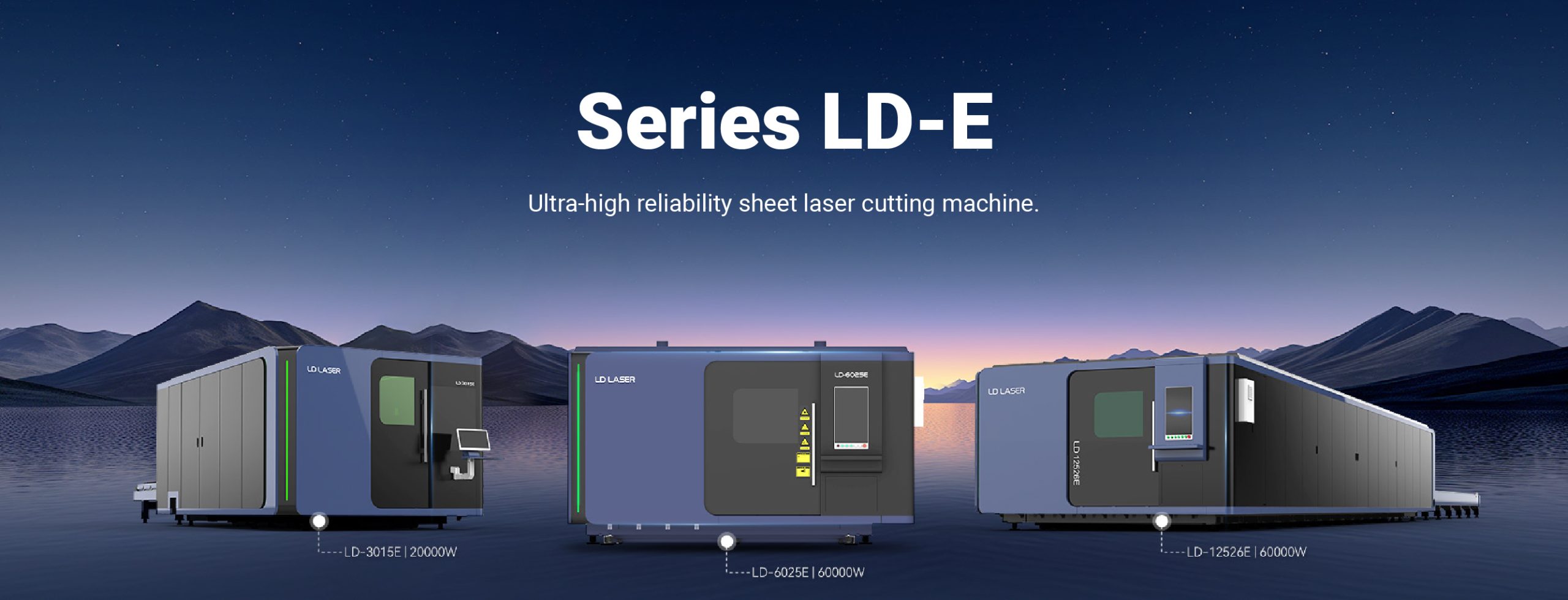

LD-E Series
Ultra-high reliability sheet laser cutting machine

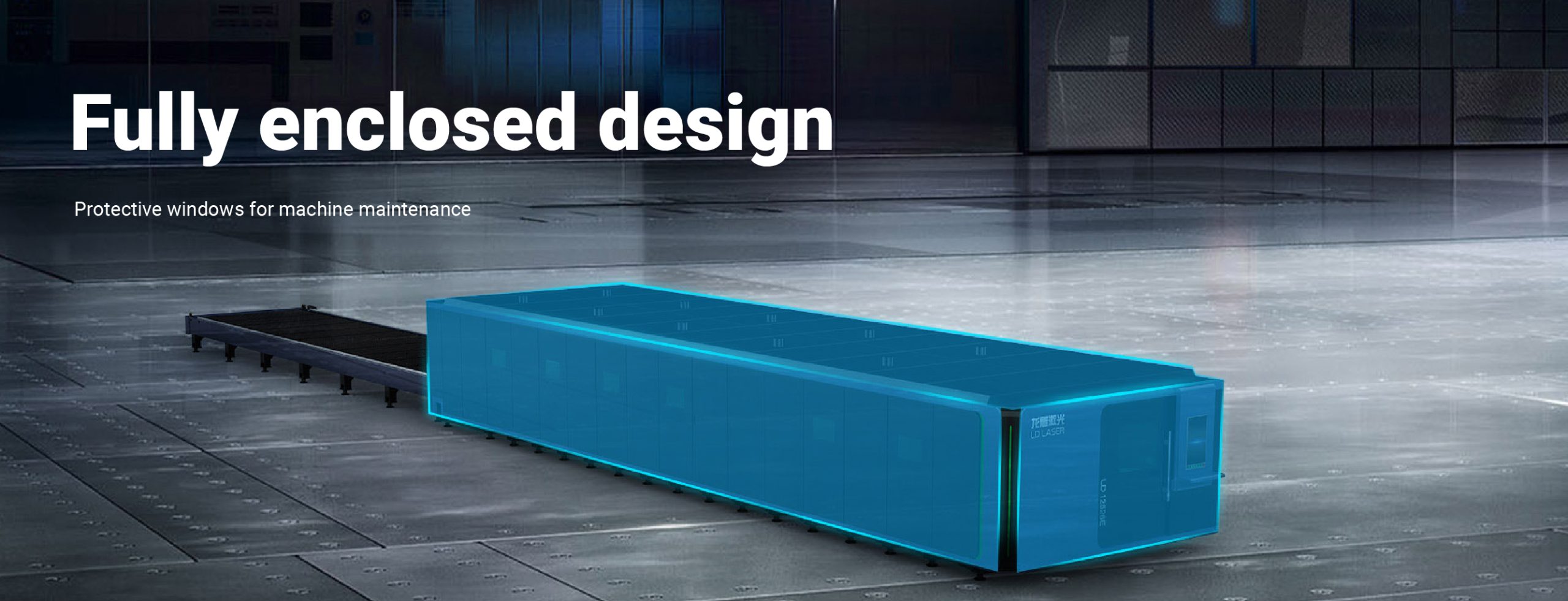

- Full enclosed structure. Protective windows for machine operation.

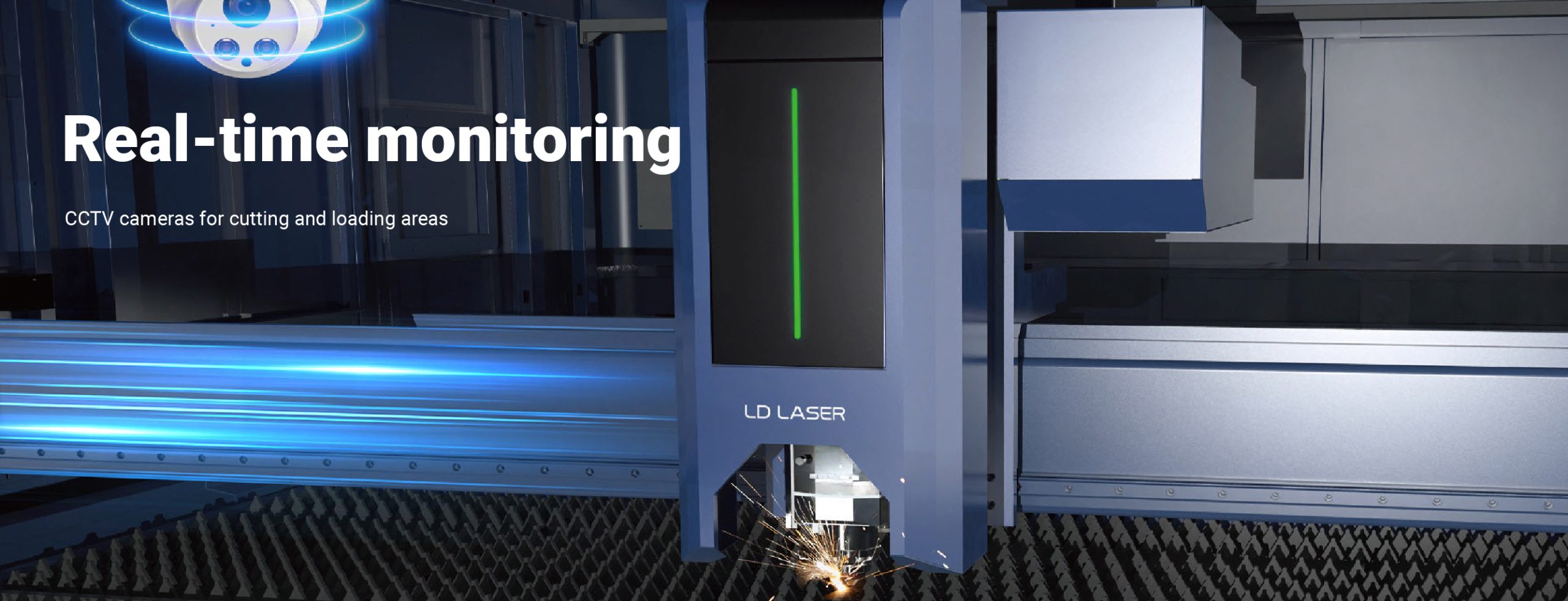

- Real-time monitoring. CCTV cameras for cutting area and loading area.

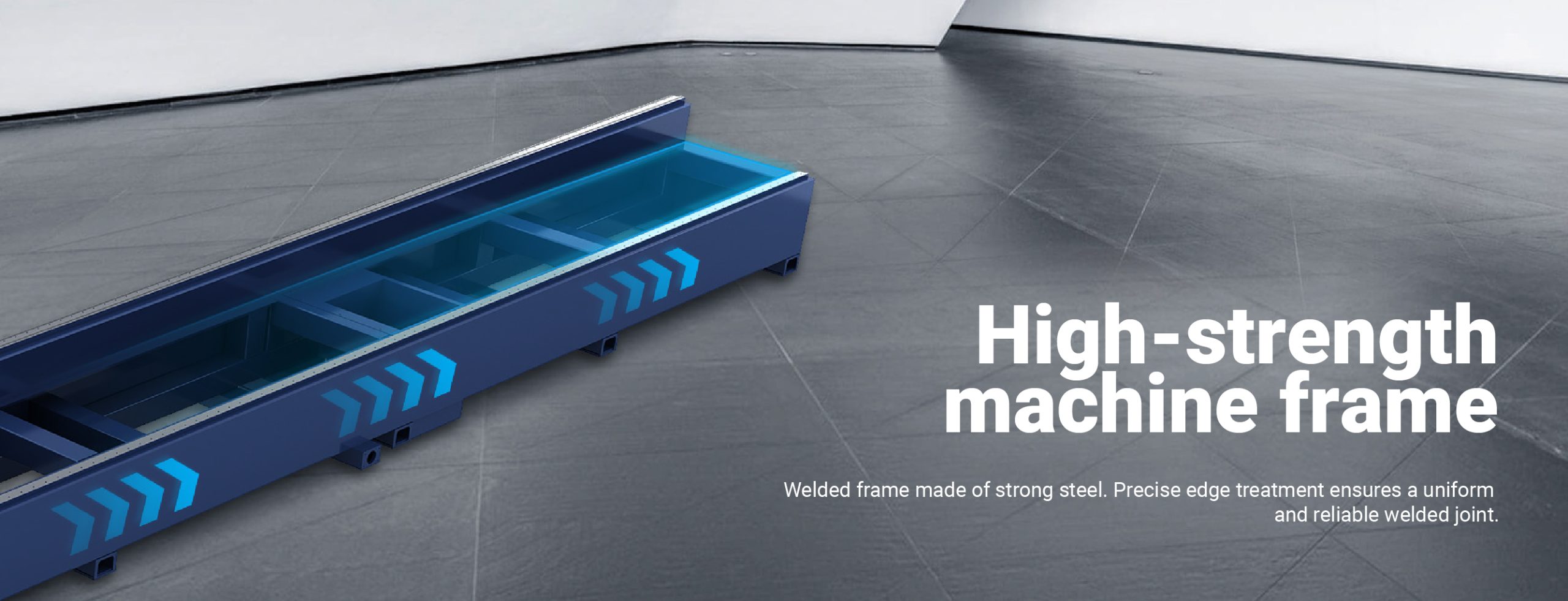

- High-strength machine frame. Welded frame made of durable steel. Precise edge processing ensures uniform and reliable welding.

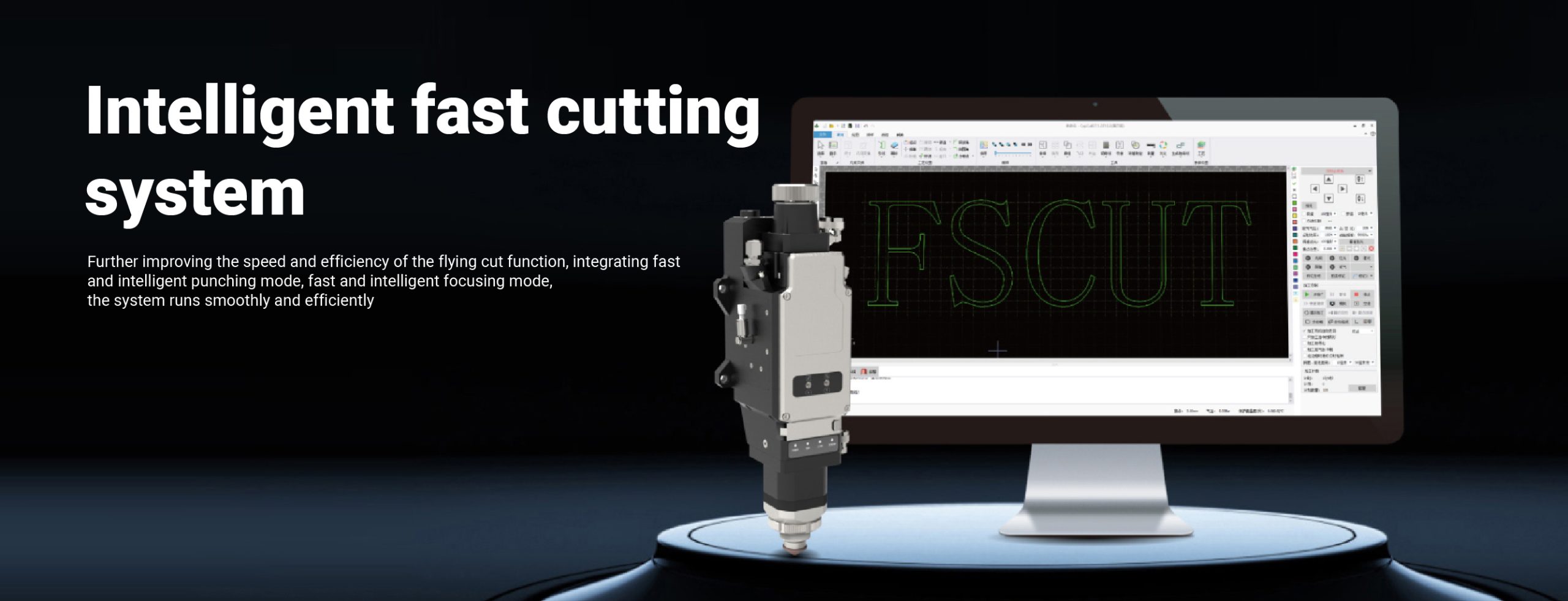

- Intelligent cutting system. Further improving the speed and efficiency of the flying cut function, integrating fast and intelligent punching mode, fast and intelligent focusing mode, the system runs smoothly and efficiently.
Technical Parameters
| Machine model | Processing area | Power | Maximum movement speed | X/Y axis positioning accuracy | Axis change accuracy X/Y | Maximum acceleration
|
| LD-3015E | 3000mm*1500mm | 1kw-12kw | 110m/min | +0.03mm/m | +0.02mm/m | 1G |
| LD-4025E | 4000mm*2000mm | 1kw-20kw | 110m/min | +0.03mm/m | +0.02mm/m | 1.5G |
| LD-6025E | 6000mm*2500mm | 6kw-120kw | 150m/min | +0.03mm/m | +0.02mm/m | 1.5G |
| LD-8025E | 8000mm*2500mm | 6kw-120kw | 150m/min | +0.03mm/m | +0.02mm/m | 1.5G |
| LD-12526E | 12500mm*1600mm | 12kw-120kw | 150m/min | +0.03mm/m | +0.02mm/m | 1.5G |

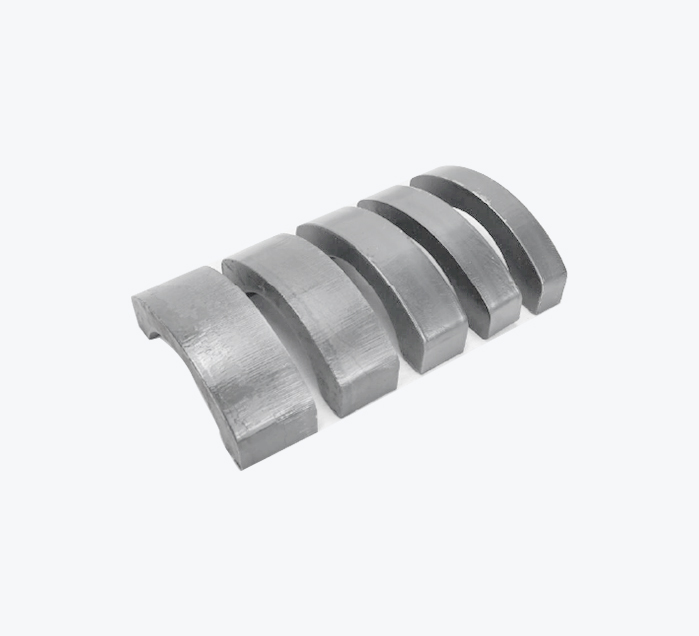

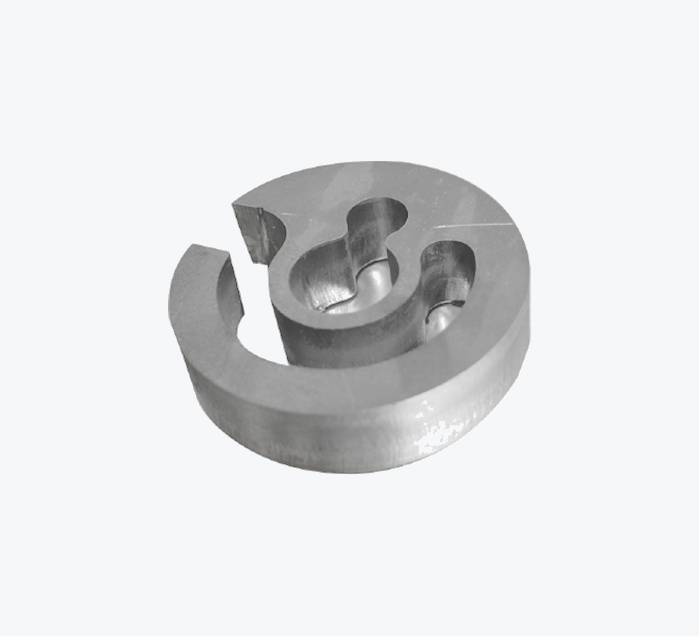

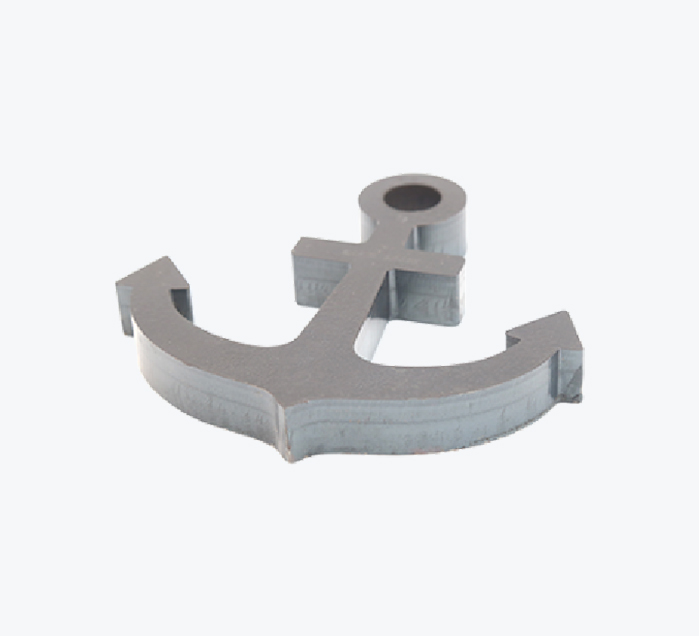

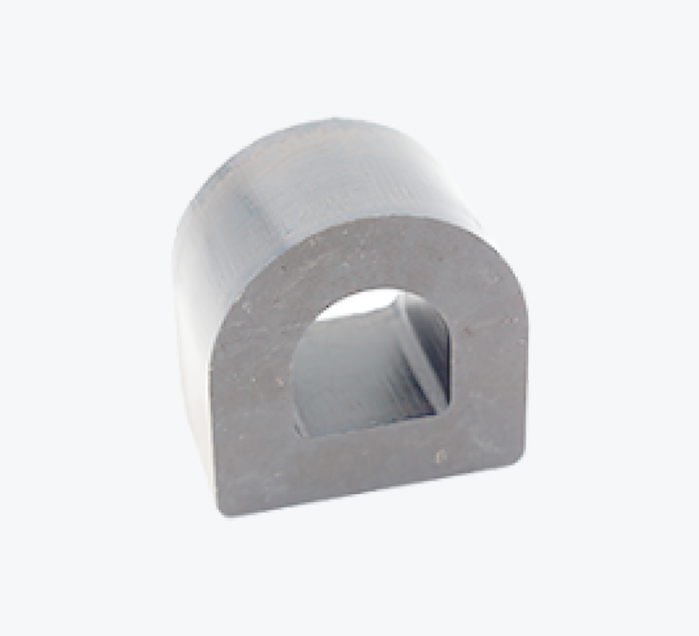

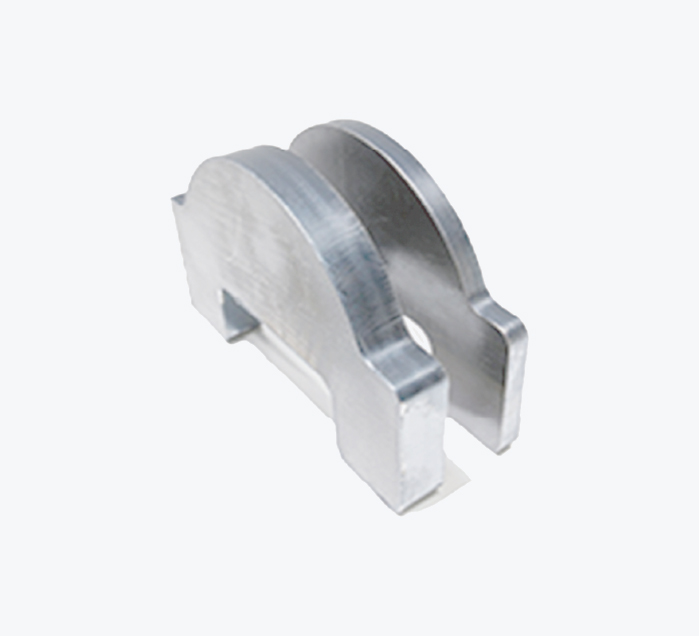

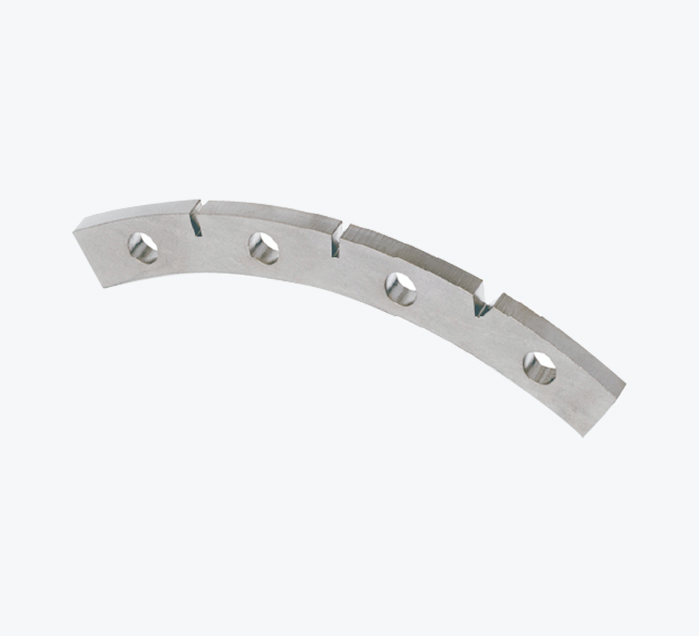

Cutting samples
